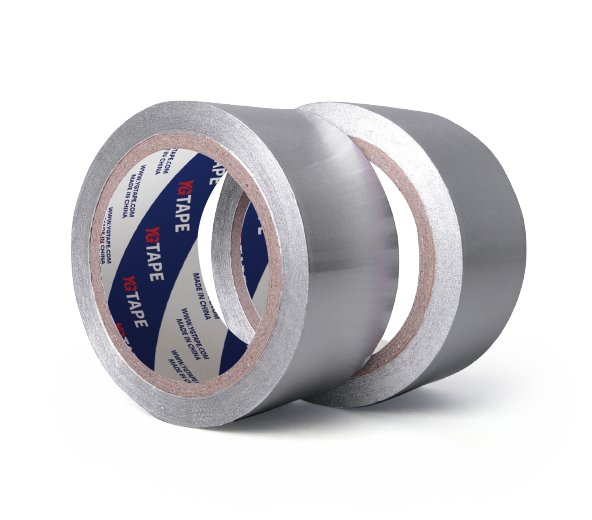

Aluminum Foil Tape (linerless)

Aluminum Foil Tape (linerless) uses aluminum foil coated with water-based or solvent-based adhesive and does not include a release liner. It is easy to tear and use, offers strong adhesion, and conforms well to curved and irregular surfaces. The tape provides good weather resistance, effective insulation, thermal resistance, and waterproofing.

Application:

·Ideal for electronic and electrical cables

·Used for sealing and insulating pipe joints

·Suitable for various applications in the insulation industry

·Provides reliable protection and insulation for cables and pipes

Additional Info

Specification Table

Test Data Sheet

Please be advised that all product data is sourced from YG Laboratory, and YG reserves the right to interpret all data. For the latest product specification data, please contact us immediately!

Type	AWD030	AW5020	AWC034-zj7
Adhesive	Solvent-based	Solvent-based	Water-based
Carrier Thickness (μm)	30±5μm	50±5μm	38±5μm
Peel Adhesion ASTM D-3330 (N/in)	15-26	≥13	≥8.5
Tensile Strength (N/in)	45-80	≥70	≥100
