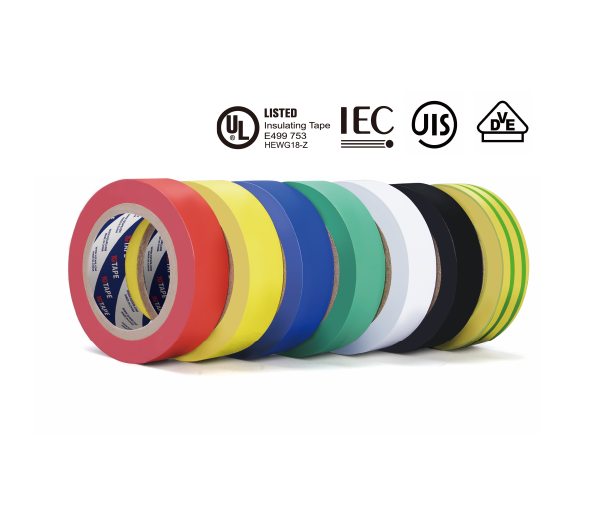

PVC Insulation Tape (Premium)

PVC Insulation Tape (Premium) is crafted from PVC film with natural rubber adhesive, providing excellent adhesion, toughness, and flame resistance. It meets certifications from organizations like UL, CSA, CE, VDE, JIS, and PS, and is available in various colors. The tape offers heat and cold resistance, insulation protection, and is free from hazardous heavy metals, complying with JIS standards.

Application:

·Suitable for bundling and repairing harnesses

·Ideal for manufacturing equipment and home appliances

·Provides secure insulation for generators and automobiles

·Used in transformers and shipbuilding applications

Additional Info

Specification Table

Test Data Sheet

Please be advised that all product data is sourced from YG Laboratory, and YG reserves the right to interpret all data. For the latest product specification data, please contact us immediately!

Product	Total thickness	Initial Tack	Peel Adhesion	Tensile Strength	Elongation % at break
	(μm)	ball (#)	(N/in)	(N/in)	ASTM D-3759
EDJ130-r5	130±10μm	26-Sep	4.5↑	44↑	≥126
EDJ150-r5	150±10μm	26-Sep	4.5↑	46↑	≥126
EDJ160-r5	160±10μm	26-Sep	4.5↑	48↑	≥126
EDH180-n2	180±10μm	26-Sep	3.0↑	45↑	≥150
